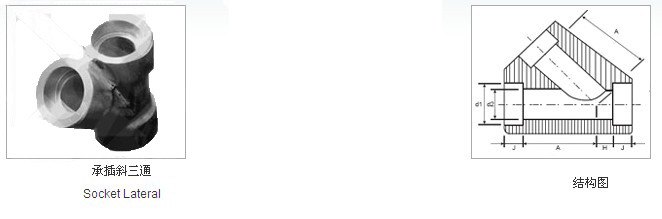

Y型三通(斜三通) |
作者:admin点击:5182 |
|
公称通径 Nominal Diameter |
承插孔 深度 Depth of Socket |
承插孔 直径 Dimension of Socket |
壁厚 Wall Thickness |
中心至承插孔底 Center to Bottom of Socket |
Cmin |
45°斜三通 Lateral |
A |
H |
DN |
NPS |
Jmin |
d1 |
3000LB |
6000LB |
9000LB |
3000LB |
6000LB |
3000LB |
6000LB |
Sch80 |
Sch160 |
XXS |
Sch80 |
Sch160 |
Sch80 |
Sch160 |
6 |
1/8 |
10 |
10.7 |
3.2 |
3.5 |
- |
- |
- |
- |
- |
8 |
1/4 |
10 |
14.1 |
3.3 |
4.0 |
- |
32 |
- |
8 |
- |
10 |
3/8 |
10 |
17.5 |
3.5 |
4.4 |
- |
37 |
- |
8 |
- |
15 |
1/2 |
10 |
21.8 |
4.1 |
5.2 |
8.2 |
41 |
51 |
11 |
13 |
20 |
3/4 |
13 |
27.4 |
4.3 |
6.1 |
8.6 |
51 |
60 |
13 |
14 |
25 |
1 |
13 |
34.2 |
5.0 |
7.0 |
10.0 |
60 |
71 |
14 |
18 |
32 |
1.1/4 |
13 |
42.9 |
5.3 |
7.0 |
10.6 |
71 |
81 |
18 |
21 |
40 |
1.1/2 |
13 |
48.3 |
5.6 |
7.8 |
11.2 |
81 |
98 |
21 |
25 |
50 |
2 |
13 |
61.1 |
6.1 |
9.5 |
12.2 |
98 |
120 |
25 |
29 |
65 |
2.1/2 |
16 |
76.9(73.8) |
7.7 |
12.5 |
- |
- |
- |
- |
- |
80 |
3 |
16 |
89.8 |
8.3 |
13.8 |
- |
- |
- |
- |
- |
100 |
4 |
19 |
115.5 |
9.4 |
- |
- |
- |
- |
- |
- | 备注: 承插壁厚外围平均值不低于所列值,最小值仅限于局部区域。 | |
|
|
|
|
