螺纹管塞(堵头) |
作者：admin点击：5457 |
|
|
公称通径
Nominal Diameter |
螺纹长度
Length of Thread |

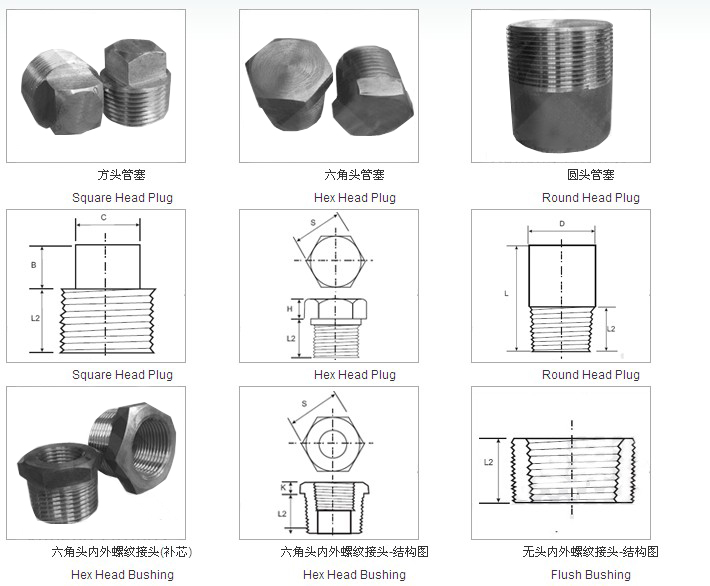

方头管塞
Square Head Plug |
圆头管塞
Round Head Plug |
六角头管塞和接头
Hex Head Plug and Bushing |
|
方头高度
Height of Square |
平面宽度
Width Of Flats |
圆头直径
Diameter of Round Head |
全长
Length |
平面宽度
Width Of Flats |
六角头高度
Hex Head Height |
|
DN |
NPS |
L2min |
Bmin |
Cmin |
D |
Lmin |
S |
Kmin |
Hmin |
| 6 |
1/8 |
9.5 |
6 |
7.0 |
10 |
35 |
11.0 |
- |
6 |
| 8 |
1/4 |
11.0 |
6 |
9.5 |
13 |
41 |
16.0 |
3 |
6 |
| 10 |
3/8 |
12.5 |
8 |
11.0 |
17 |
41 |
17.5 |
4 |
8 |
|
15 |
1/2 |
14.5 |
10 |
14.5 |
21 |
44 |
22.0 |
5 |
8 |
| 20 |
3/4 |
16.0 |
11 |
16.0 |
27 |
44 |
27.0 |
6 |
10 |
| 25 |
1 |
19.0 |
13 |
20.5 |
33 |
51 |
35.0 |
6 |
10 |
| 32 |
1.1/4 |
20.5 |
14 |
24.5 |
43 |
51 |
44.5 |
7 |
14 |
| 40 |
1.1/2 |
20.5 |
16 |
28.5 |
48 |
51 |
51.0 |
8 |
16 |
| 50 |
2 |
22.0 |
17 |
33.5 |
60 |
64 |
63.5 |
9 |
17 |
| 65 |
2.1/2 |
27.0 |
19 |
38.0 |
73 |
70 |
76.0 |
10 |
19 |
| 80 |
3 |
28.5 |
21 |
43.0 |
89 |
70 |
89.0 |
10 |
21 |
| 100 |
4 |
32.0 |
25 |
63.5 |
114 |
76 |
117.5 |
13 |
25 | | | | |
| |
| |
|
|
